Specification
| Model |
TX-MB-01（L） |
Vertical Divergence |
3° |
| Power supply |
AC220V,DC12V/24V/48V |
Horizontal Out-put |
360° |
| Power frequency |
50HZ～60HZ |
Overall Size |
215*215*204mm |
| Average power |
≤2.5W |
Installation size |
Φ185～200mm*4*M8 |
| Working mode |
Flash 20times/min |
Ambient Temperature |
-56℃~+66℃ |
| Emitted color |
Red |
Weight |
2.3kg（not include mounting bracket） |
| Light source |
LED |
Wind load |
240km/h |
| Shell material |
Aviation Aluminum alloy |
Luminous mirror material |
optical PC |
| Light source lifespan |
≥200000h |
Protection grade |
IP68 |
| Surge protection rating |
5KA |
Relative humidity
|
0％～95％ |
| Get wet in the rain |
Can be exposed to rain in any wind direction |
Salt spray |
Can be exposed to salt spray |
| Radiation |
Can be exposed to solar radiation |
Insulation characteristic |
Between the input end and the shell: 1.414kVDC, 10s no breakdown |
| Seismic resistance |
10～500Hz,2G 10min/cycle,XYZ 60 minutes for each axis |
EMC standards |
Emitted:EN55022(CISPR22) class A harmonic wave:EN61000-3-2,-3 |
| Mean Time Between Failure |
≥200000h,MIL-HDBK-217F(25℃) |
Leakage current |
＜10uA |
| Electric shock protection |
Has |
Altitude |
≥5500m |
| Effective intensity |
night：2000cd |
| Photocell ambient brightness |
50/100Lux |
Features
- Housing adopt high intensity casting aviation aluminum, fully sealed structure.
- Adopt high efficient SMT LED chip, which have the specific of high brightness, low power consumption and long long lifespan.
- Adopt with independent research and development advanced optical lighting system，Spotlight angle meets CAAC and ICAO requirements.
- With surge protection device, which can adopt to extremely bad working environment.
- Adopt advanced high high thermal conductive stoving varnish technology, which provide excellent heat dissipation, it can shortage lamp’s weight and volume efficiently
- With the impact resistance, anti lightning, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather.
- With over-current protection function.
- It can be customized functions of GPS Beidou wireless synchronization, LORA-10KM wireless sync, Remote control and telemetering.
Attention / Usage Tips
- Don't use any out of nominal voltage,or will destroy equipment.
- Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
- Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.
Application
Block, Airport, high-pole lamp, Chimney, Bridge, Towers, Communication tower, super high building.

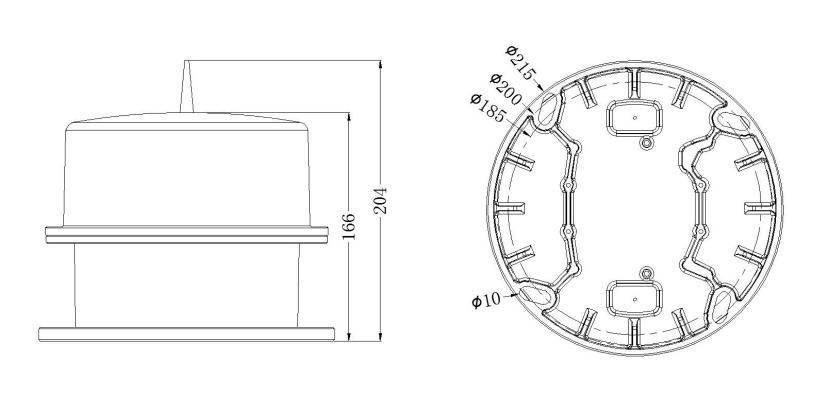

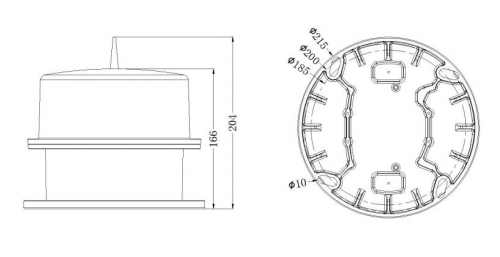

Dimension
