CAAC Approved Low-intensity Type C Aviation Obstruction Light

CAAC Approved Low-intensity Type C Aviation Obstruction Light

Item No.: TX-LC-01（L）

Base adopt casting aviation aluminum. Light source adopt high efficient SMT LED chip and combine with reflecting optical structure; Management circuit with Strong lightning & surge protection.

INQUIRY

Description

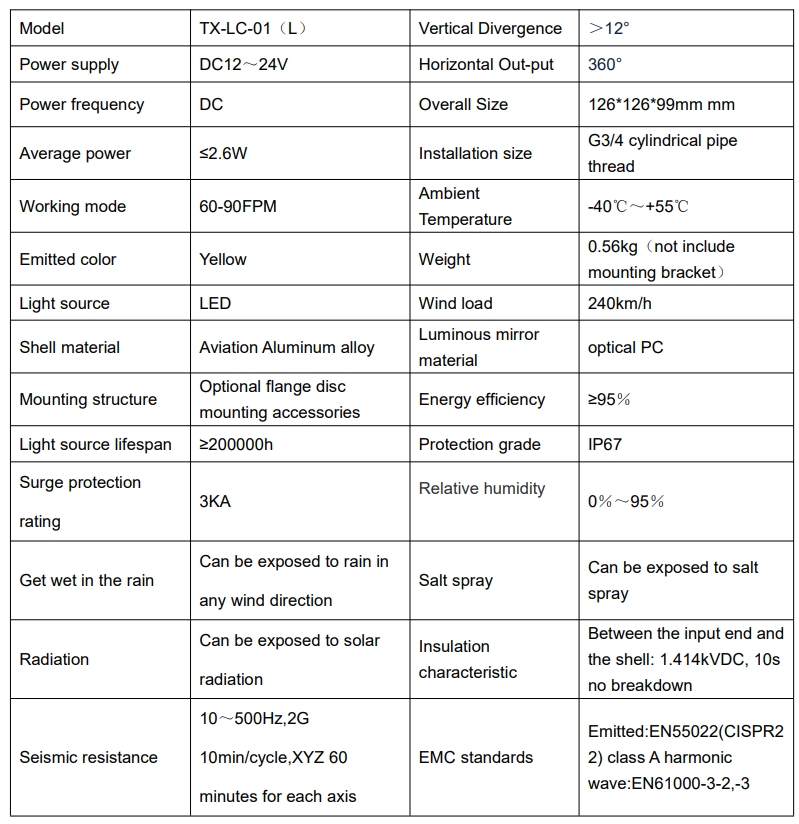

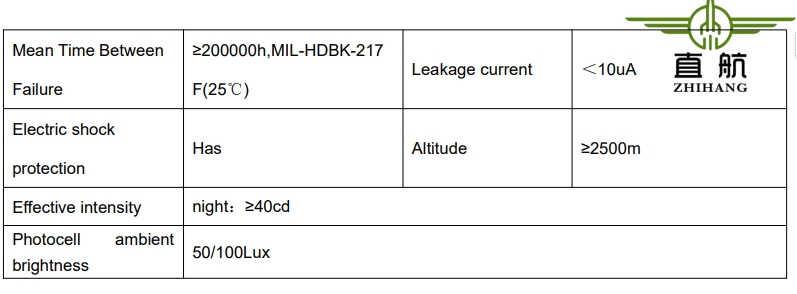

Specification

Features

Housing adopt high intensity casting aviation aluminum, fully sealed structure.
Adopt high efficient SMT LED chip, which have the specific of high brightness, low power consumption and long long lifespan.
Adopt with independent research and development advanced optical lighting system，Spotlight angle meets CAAC and ICAO requirements.
With surge protection device, which can adopt to extremely bad working environment.
Adopt advanced high high thermal conductive stoving varnish technology, which provide excellent heat dissipation, it can shortage lamp’s weight and volume efficiently
With the impact resistance, anti lightning, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather.
With over-current protection function.
Working environment temperature -40℃ ~ +55℃, waterproof grade up to IP66.

Attention / Usage Tips

Don't use any out of nominal voltage,or will destroy equipment.
Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.

Application
Moving obstacles.

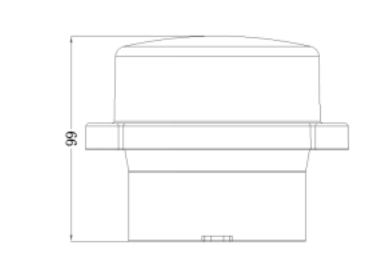

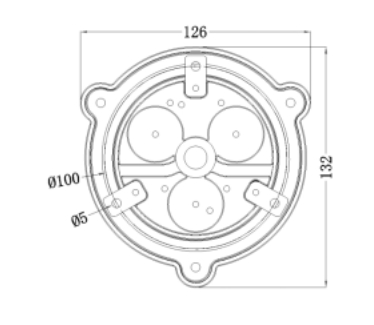

Dimension

CAAC Approved Low-intensity Type C Aviation Obstruction Light
