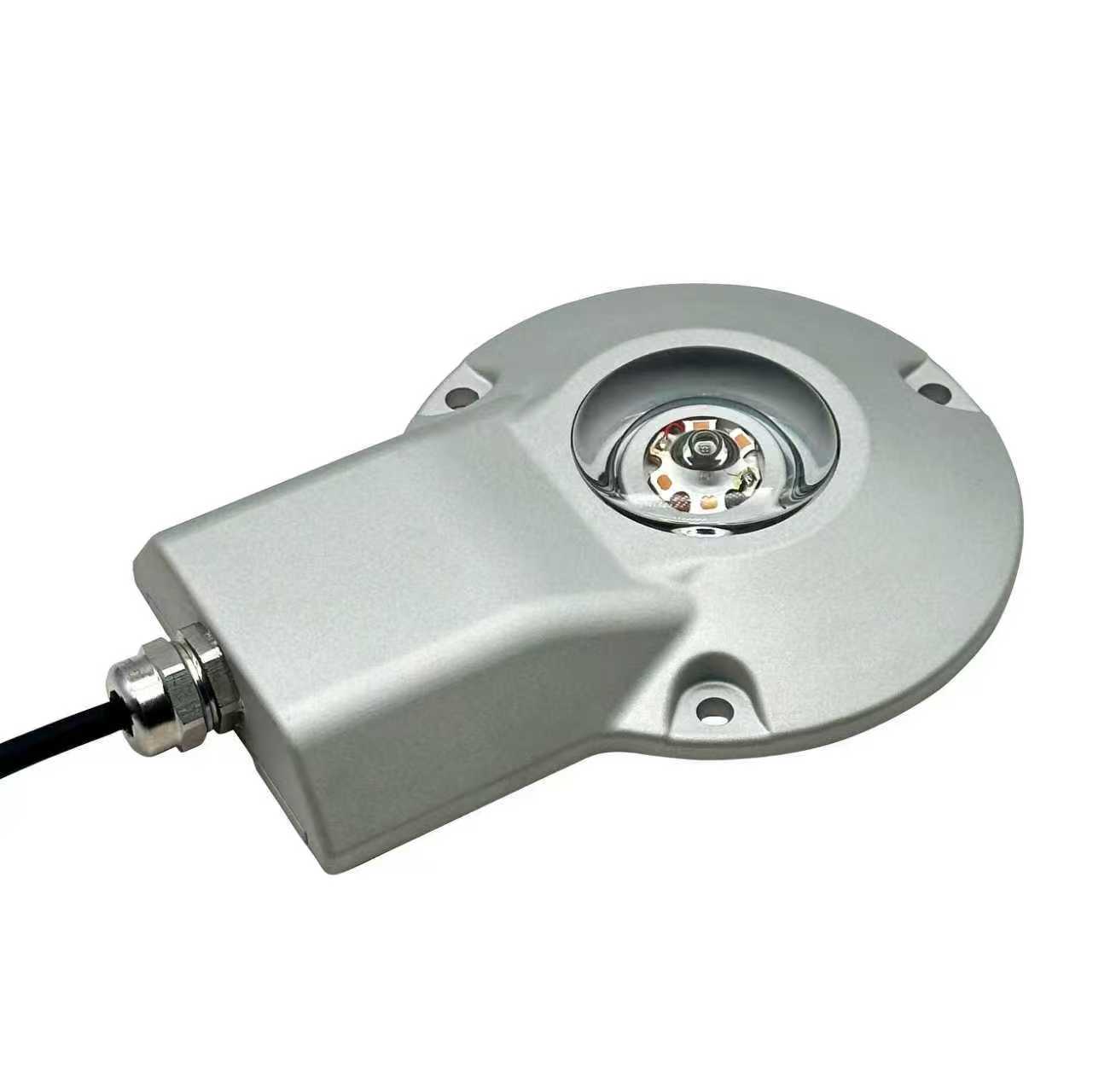

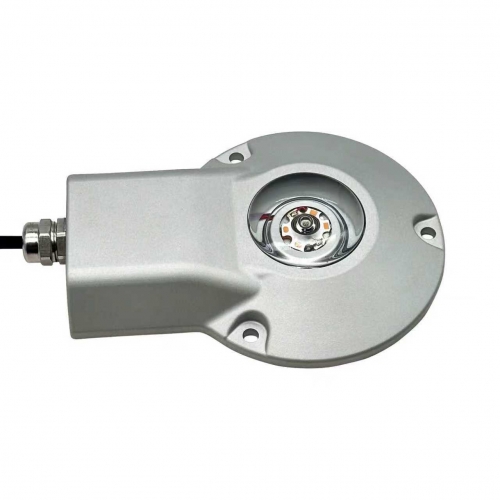

Helipad Perimeter Light

Item No.: GS-HP/Z

1. Ultra-thin integrated design with a height of 25mm;
2. The shell is is forged from high-strength aviation aluminum and features a fully sealed structure；
3. The self-developed optical system meets CAAC and ICAO emission angle standards, featuring sur

INQUIRY

Description

Specification

Model	GS-HP/Z	Vertical Divergence	0～30°
Power Supply	AC60V～305V	Horizontal Out-put	360°
Power Frequency	50HZ～60HZ	Overall Size	160mm×120mm×25mm
Average Power	≤5W	Ambient Temperature	-40℃~+55℃
Working Mode	Steady Light	Weight	0.55kg
Emitted Color	White or green	Wind load	240km/h
Light Source	LED	Optical Mirror material	Optical glass
Shell Material	Aluminum alloy for aviation	Protection Grade	IP68
Light Source Lifespan	≥200000 h	Relative Humidity	0%～95%
Surge Protection Rating	3KA	Salt Spray	Can be exposed to salt spray
Get wet in the rain	Can be exposed to rain in any wind direction	Radiation	Can be exposed to solar radiation
Insulation Characteristic	Between the input end and the shell: 1.414kVDC, 10s no breakdown	EMC Standards	Emitted:EN55022(CISPR22) class A harmonic wave:EN61000-3-2,-3
Seismic Resistance	10～500Hz,2G 10min/cycle,XYZ 60 minutes for each axis	Mean Time Between failure	≥200000h,MIL-HDBK-217F(25℃)
Leakage Current	≤10ua	Altitude	5500m
Electric shock protection	≥0.9
Effective Intensity	/
Lighting Environment Brightness	/

Function & Features
1.The shell is forged from high-strength aviation aluminum and features a fully sealed structure。
2.Ultra-thin integrated design with a height of 25mm, suitable for special occasions with specific site requirements
3.The high-power surface-mount LED chip is characterized by high brightness, low power consumption, and long lifespan.
4. The self-developed optical system meets CAAC and ICAO emission angle standards, featuring surge protection.
5. It is equipped with surge protection device and can be used in harsh working environment.
6.The advanced high thermal conductivity treatment technology is adopted, which has excellent heat dissipation and can effectively increase the service life of the product.
7.It has the ability to resist impact, lightning, sun, rain, snow, typhoon, hail and other bad weather.
8. It has over current protection function.
9.Industrial-grade operating environment temperature: -40℃ to +55℃, with waterproof rating up to IP68.

Usage notice
1.Do not use the nominal power supply voltage, otherwise the equipment will be damaged;
2.When the equipment is faulty, do not disassemble by yourself, so as not to cause personal injury;
3.After the operation, the installation personnel must check whether the waterproof treatment of the power line is good and whether the fixing screws are tightened;
4.Non-professionals are not allowed to repair the equipment to avoid expanding the fault and causing life injury.

Application
Airfield, helipad, military heliport, deck landing pad, Marine helipad

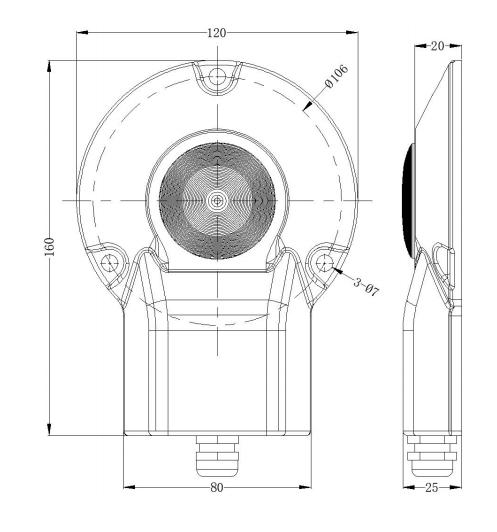

Dimension drawing

Helipad Perimeter Light
