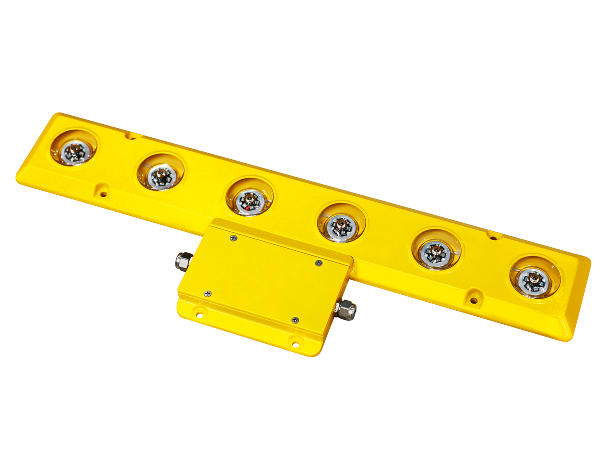

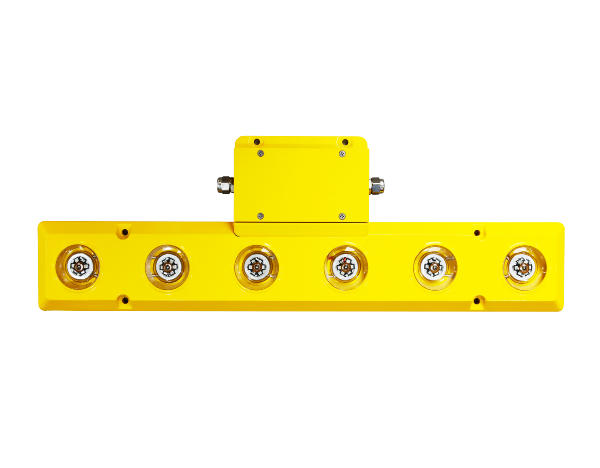

Helideck H Lighting

Item No.: GS-HP/CH

1. The overall thickness of the product ≤25mm, which meets ICAO requirements；
2. The shell is made of aviation aluminum, which is corrosion resistant and UV resistant；
3. Emitting Angle that meets ICAO requirements.

INQUIRY

Description

Specification

Performed Standard	CAAC	MH 5001-2021 and AC-137-CA-2017-01-R1	Heliport Light
	ICAO	ICAO Annex 14 Volume I The 8th Edition	Airport design and operation
	FAA	Advisory Circular 150/5345-43J

Model	GS-HP/CH	Overall Size	60019525mm
Power Supply	DC9～48V or AC85V～305V	Installation Size	See diagram
Average Power	9W	Ambient Temperature	-40℃～60℃
Working Mode	Steady Light	Weight	3.2kg
Light Intensity	White ≥100CD	Protection Grade	IP67
Illuminant	LED	Humidity	＜95%
Light Source Life	≥20 years	Height	＜4500M
Light Color	Optional color: White, Yellow

Function & Features
1. The independently designed tempered glass optical lens has a light emitting Angle that meets ICAO requirements.
2. Stable work, strong anti-interference ability and anti-vibration.
3. Fully sealed structure, excellent waterproof performance.
4. It has surge protection device.
5. Professional customized LED chip, high brightness, long life.
6. The product adopts isolation and voltage reduction, and all circuits work in low voltage state to improve the service life of circuits and light sources.
7. The overall thickness of the product ≤25mm, which meets ICAO requirements.
8.The shell is made of aviation aluminum, which is corrosion resistant and UV resistant.

Usage notice
1.Do not use the nominal power supply voltage, otherwise the equipment will be damaged;
2.When the equipment is faulty, do not disassemble by yourself, so as not to cause personal injury;
3.After the operation, the installation personnel must check whether the waterproof treatment of the power line is good and whether the fixing screws are tightened;
4.Non-professionals are not allowed to repair the equipment to avoid expanding the fault and causing life injury.

Application

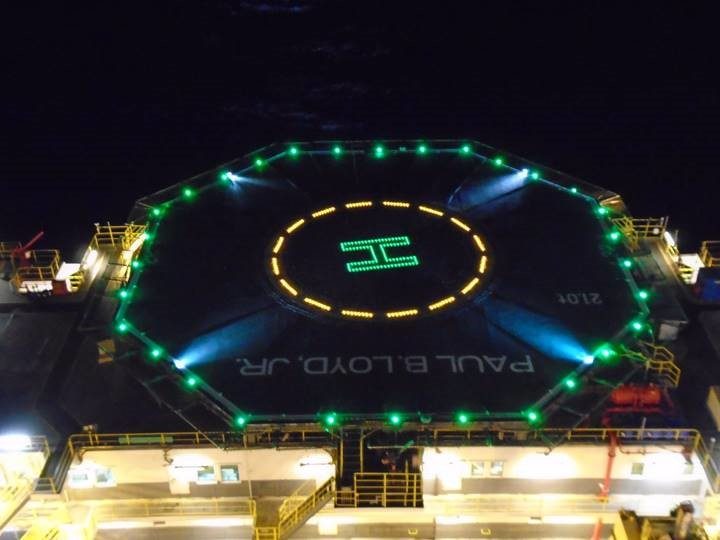

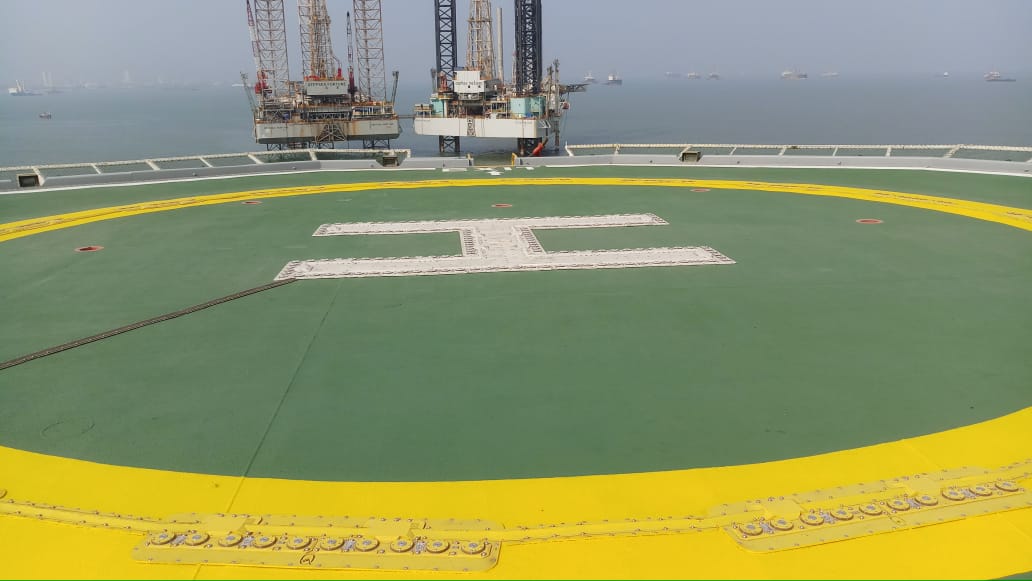

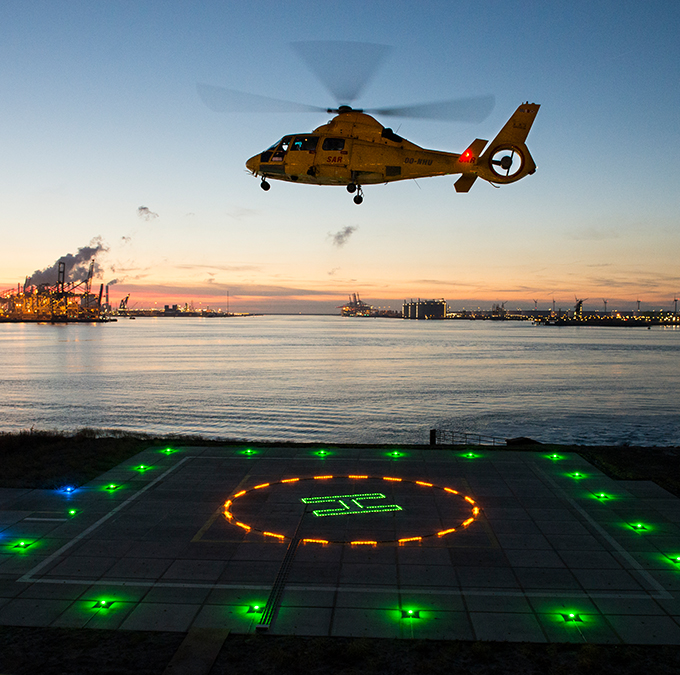

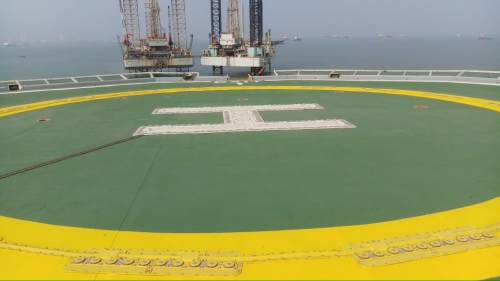

Airfield, helipad, military heliport, deck landing pad, Marine helipad
